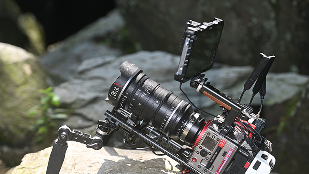

Wide-angle zoom is a must-have for film and television shooting. It offers balanced field of view and excellent distortion control. The lens has outstanding spatial expression ability, which can enhance the depth of the picture. It can capture powerful and layered compositions for grand outdoor scenes, cramped indoor spaces, and multiple group portraits. It is suitable for various shooting scenarios such as advertisements, documentaries, and feature films.
High-definition sample download

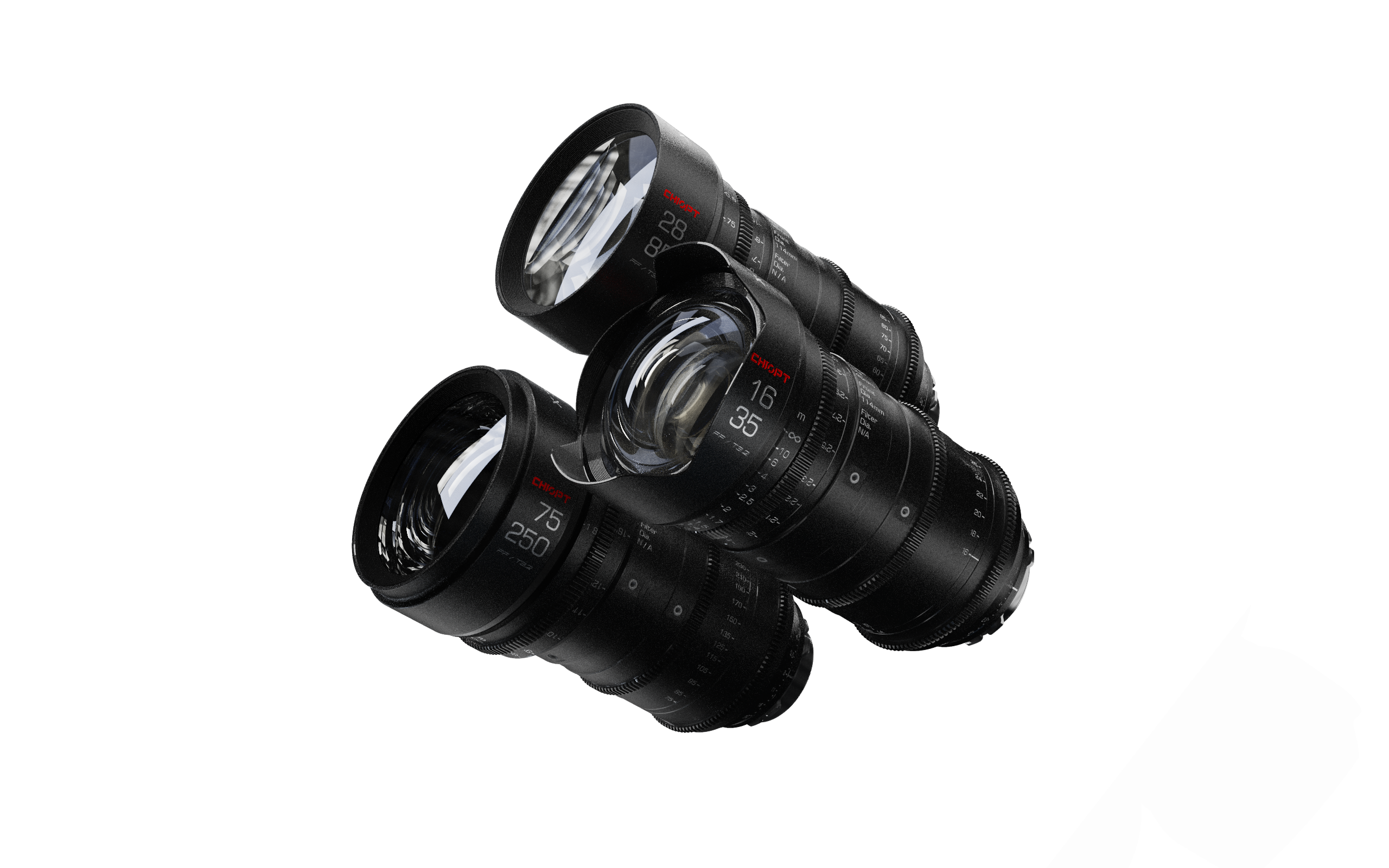

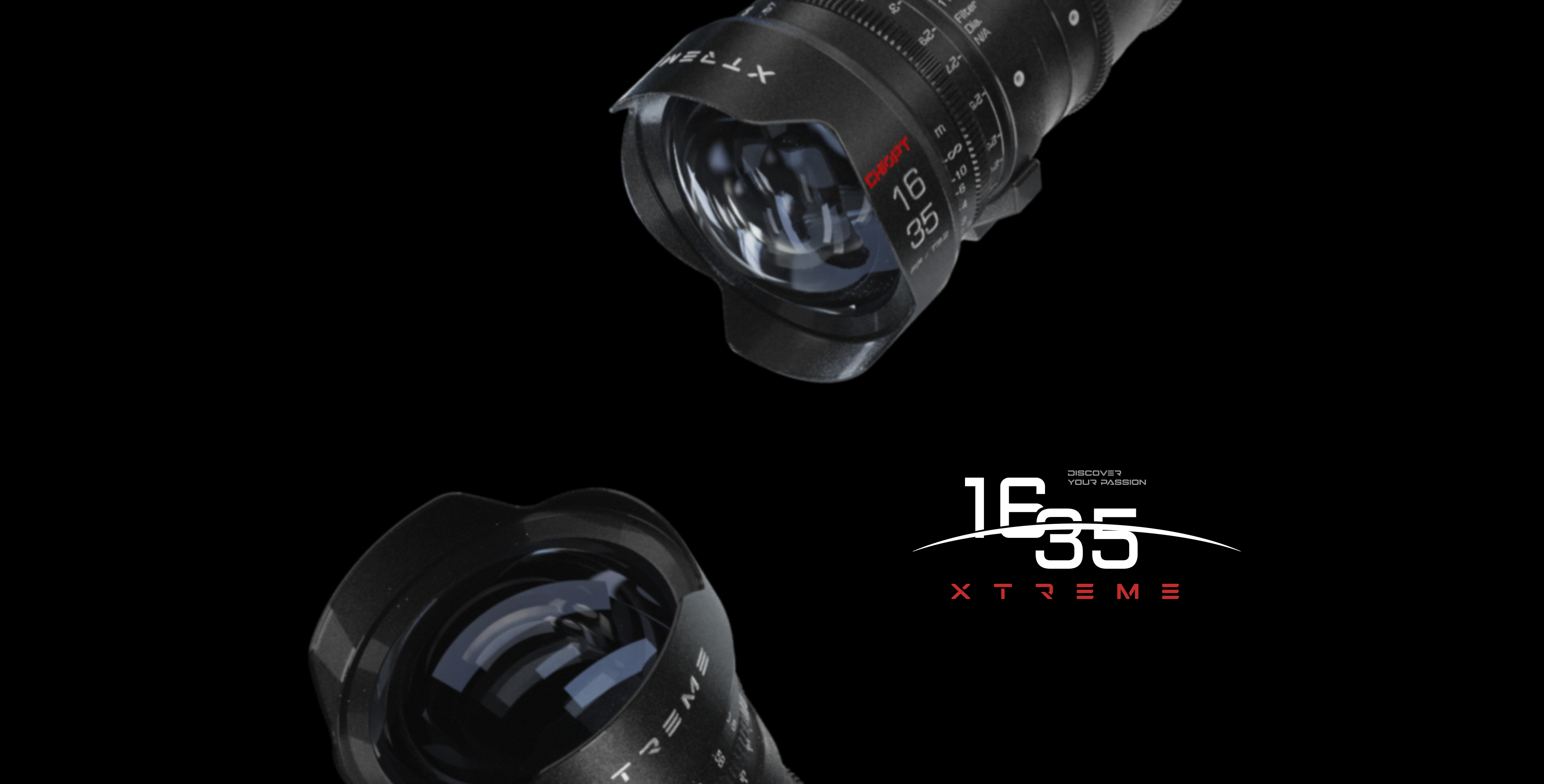

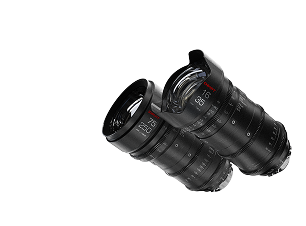

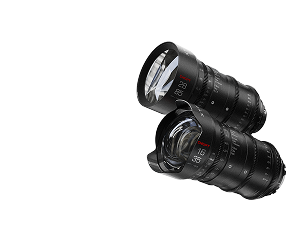

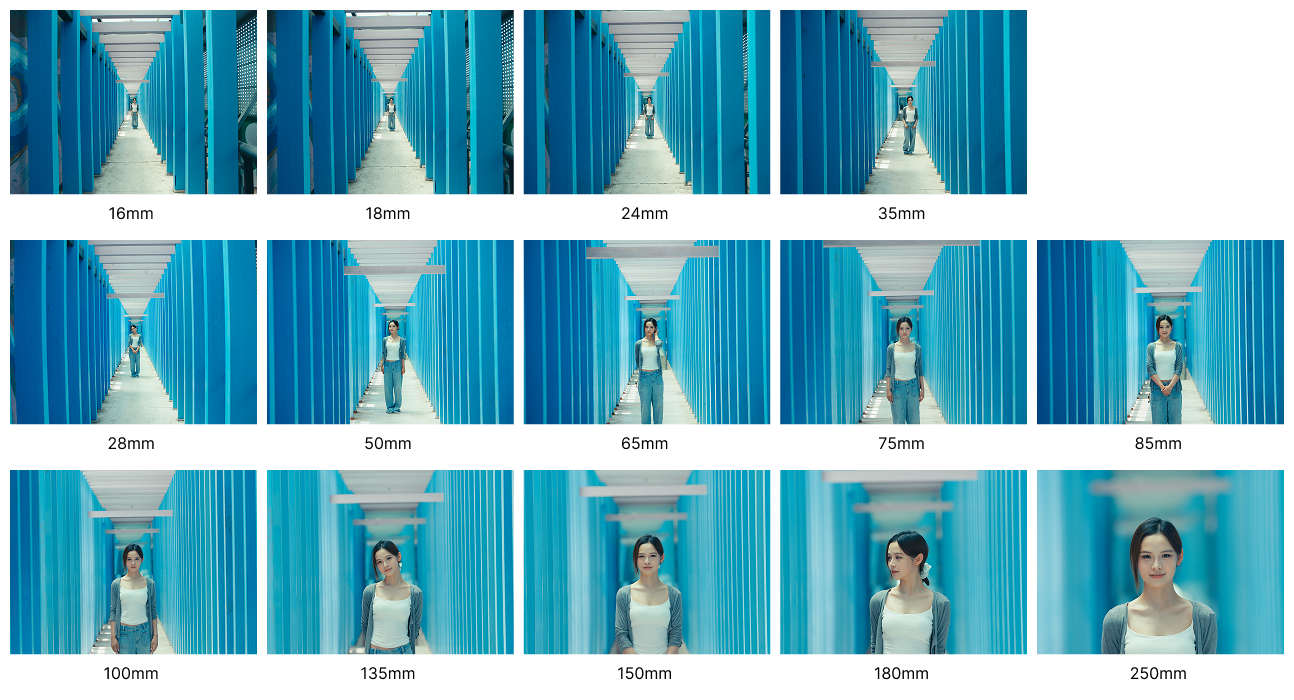

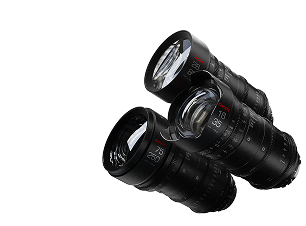

The XTREME 16-35 professional wide-angle zoom lens, with a 16-35mm golden focal range, creates a wide field of view and strong spatial tension. It is combined with the same series 28-85 and 75-250 to achieve full coverage from wide-angle to telephoto. It is compatible with full-frame/S35 and has multiple card slots for interchangeable lenses. This set meets the creative needs of various scenes such as film, advertising, feature films, documentaries, and broadcasting. The golden focal range is fully covered from ultra-wide to standard wide-angle, with three lenses covering the entire focal range, providing a complete set for all requirements.

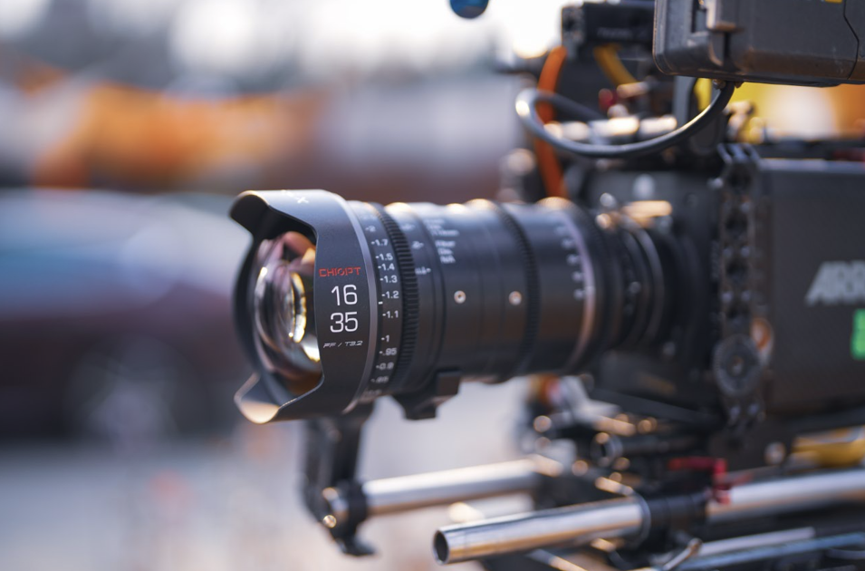

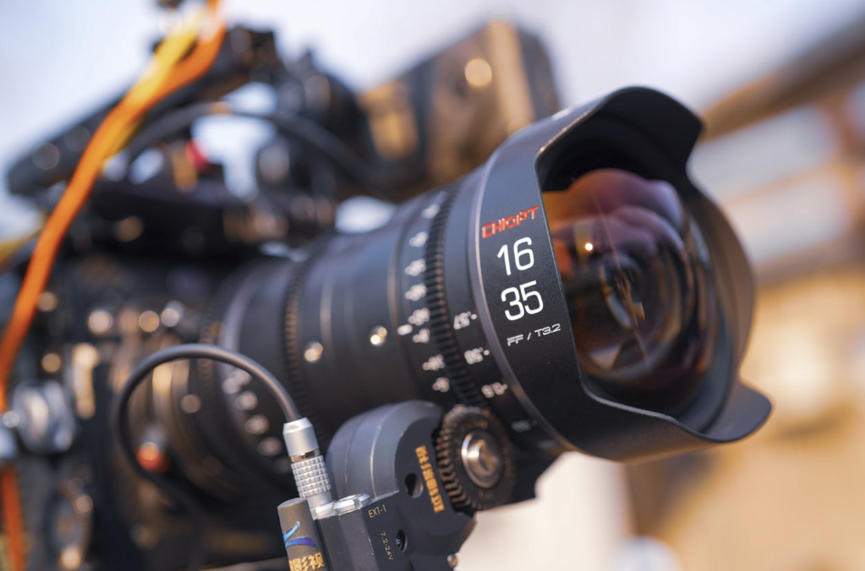

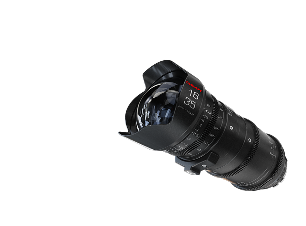

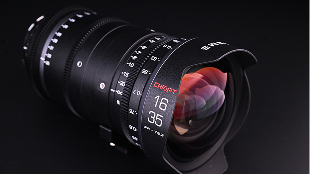

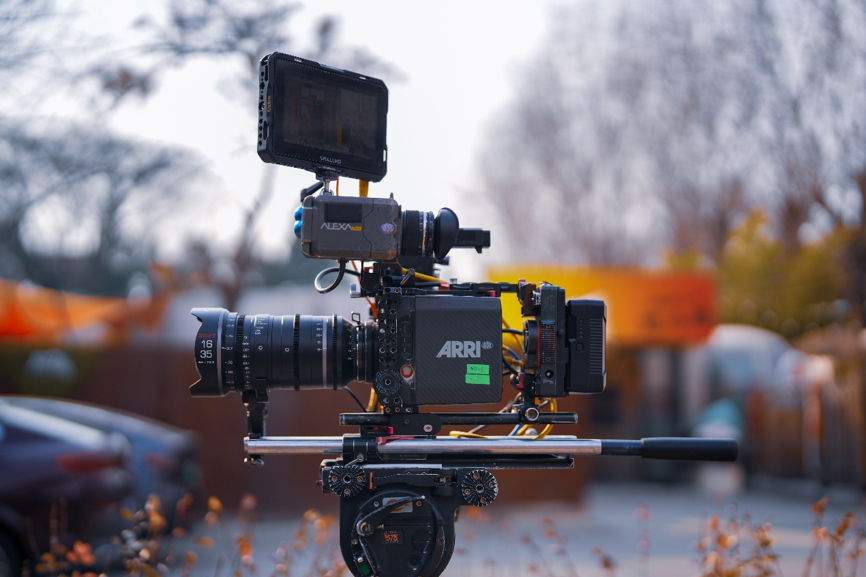

XTREME 16-35mm T3.2 Gold Wide-Angle Zoom Cinema Lens. This lens in the same series features unified optical and mechanical adjustments, offering excellent imaging quality, stable operation, and high cost-effectiveness. It is a versatile production lens suitable for various scenarios such as dramas, advertisements, documentaries, etc.
It exhibits excellent anti-distortion capability, easily avoiding image distortion
The color expression matching 2885 and 75250 has a consistent and good color style
Unique spraying process. Higher hardness, better strength, and enhanced resistance to fingerprints and oil stains.
Specifically for the usage environment involving sand and dust raindrops, special materials have been implanted into the gaps of the lens' metal casing to withstand general sand and dust raindrops
*Protecting against sand and dust raindrops is not a promised function of this product. It is only designed to minimize the possibility of its occurrence during product design. Please use it in a safe environment
The product undergoes rigorous inspection before leaving the factory to ensure precise back flange spacing. Meanwhile, various specifications of gaskets are provided as standard equipment for DIY adjustment. Only with precise flange spacing can uniform focus be achieved.

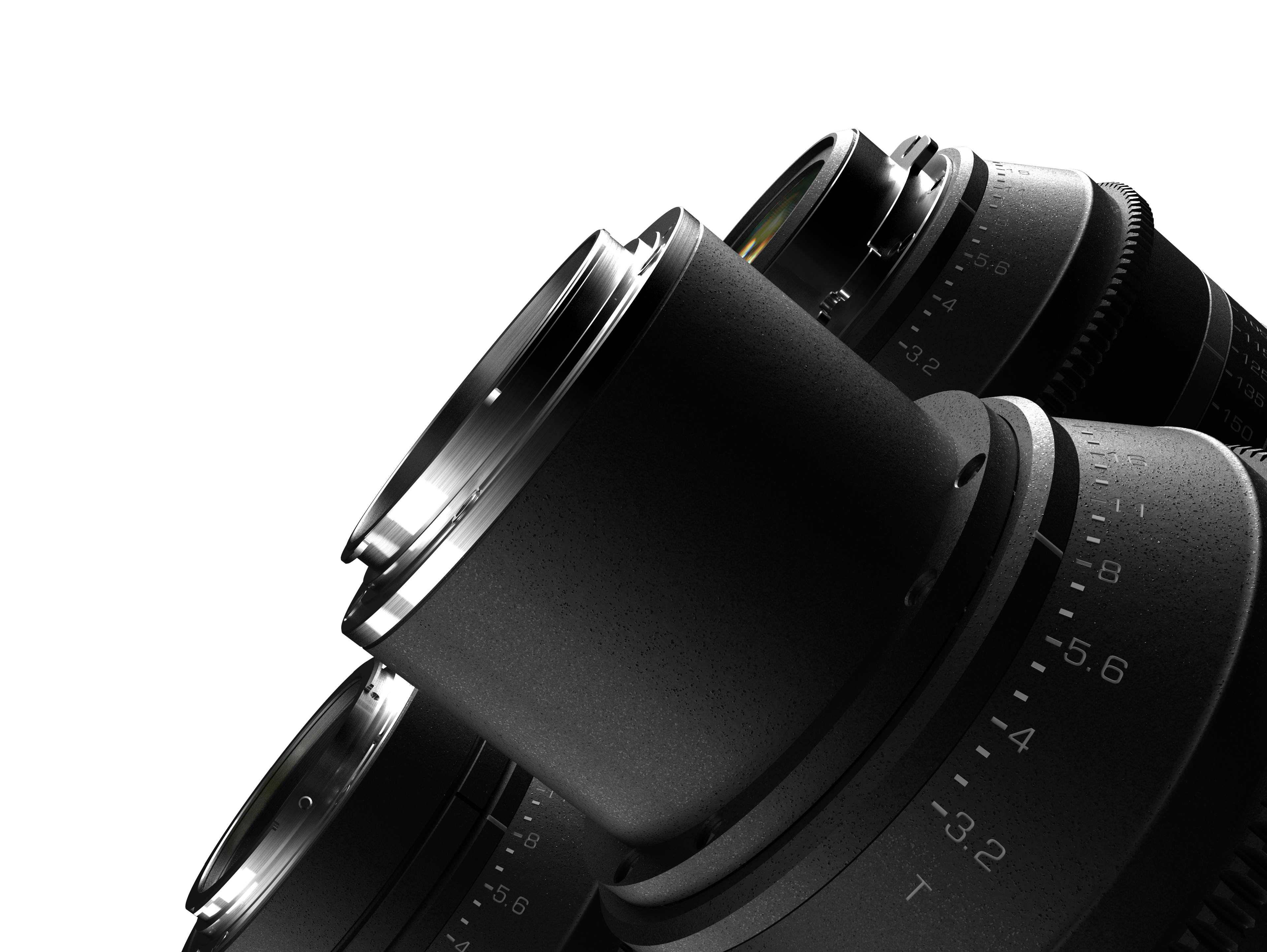

The all-metal structure is sturdy, with PL/EF/E mounts all made of high-strength stainless steel, providing durability and reliability for your shooting projects.
Excellent chromatic aberration correction with extreme suppression of purple fringing, delivering clean edges free of color artifacts under high contrast.
With a 288-degree focusing range, manual precise focusing can be achieved

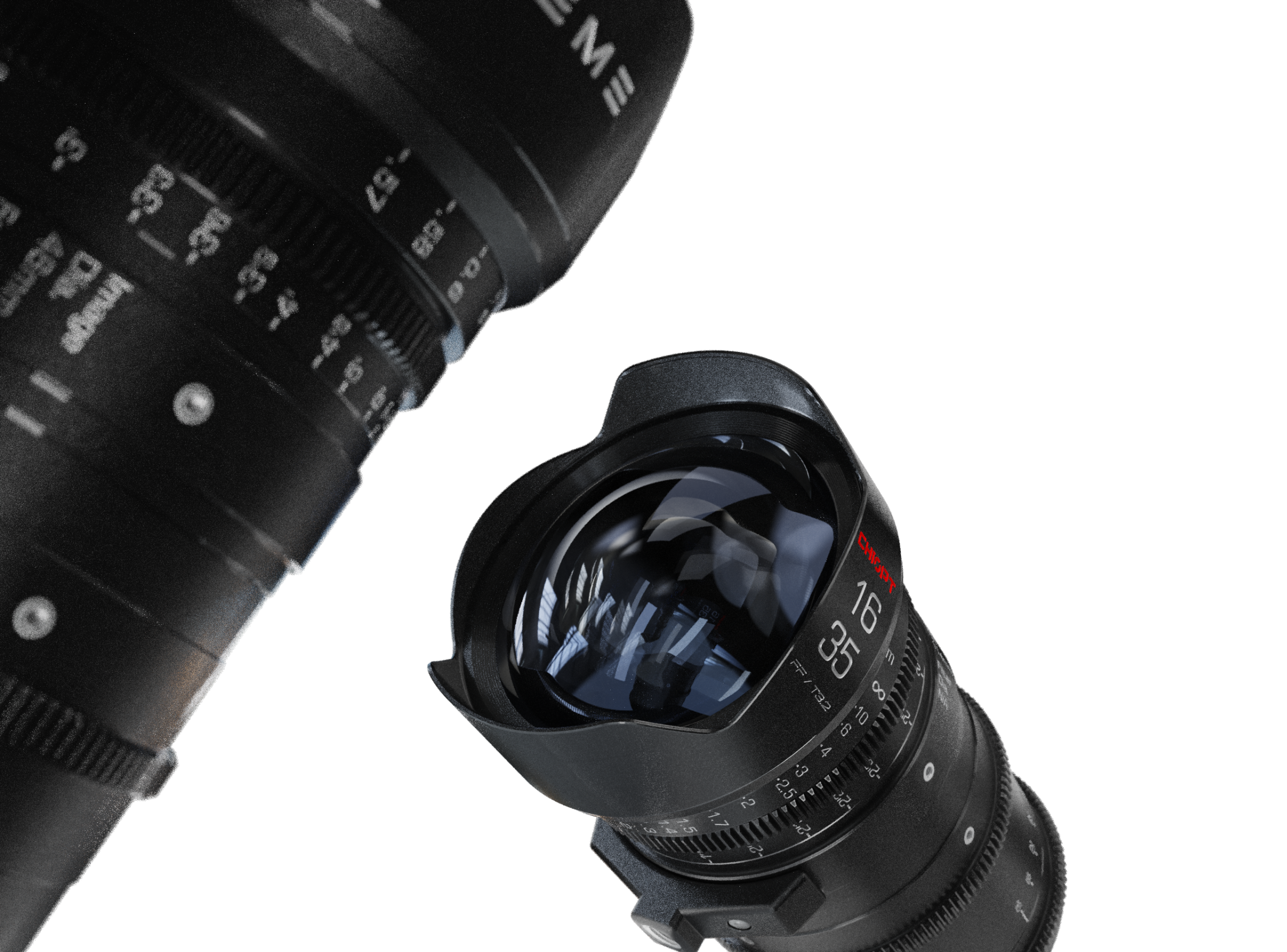

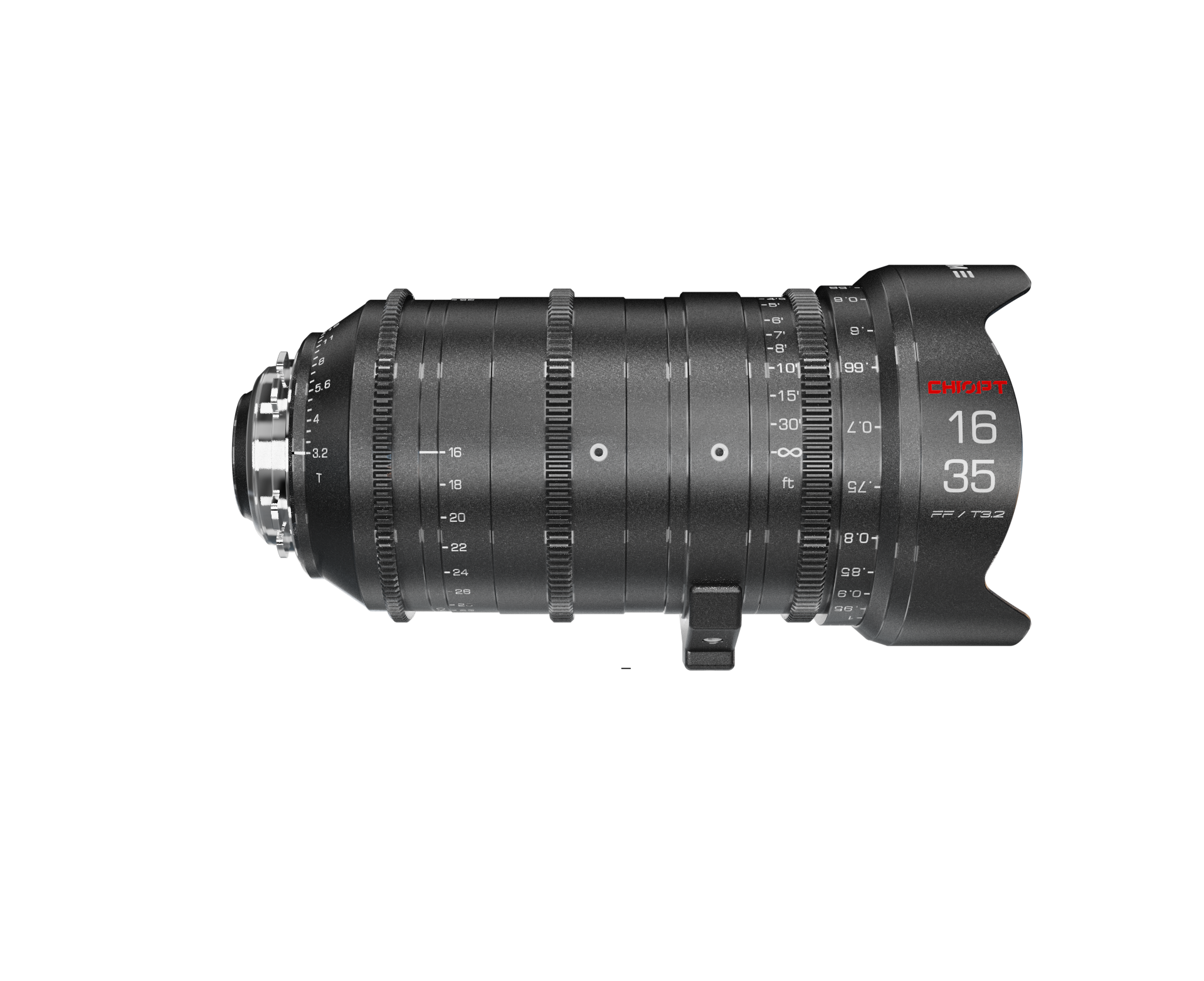

The left side of the focusing ring is marked with metric scale, while the right side is equipped with imperial scale. The dual-scale system can accommodate the operational habits of photographers from both domestic and international markets.
Silence also conveys a sense of depth.
When viewed from afar, it echoes like the reverberations of a valley; when viewed closer, it feels like the unspilled rain in one's eyes.
A zoom lens silently captures the world, bringing its vastness into focus.

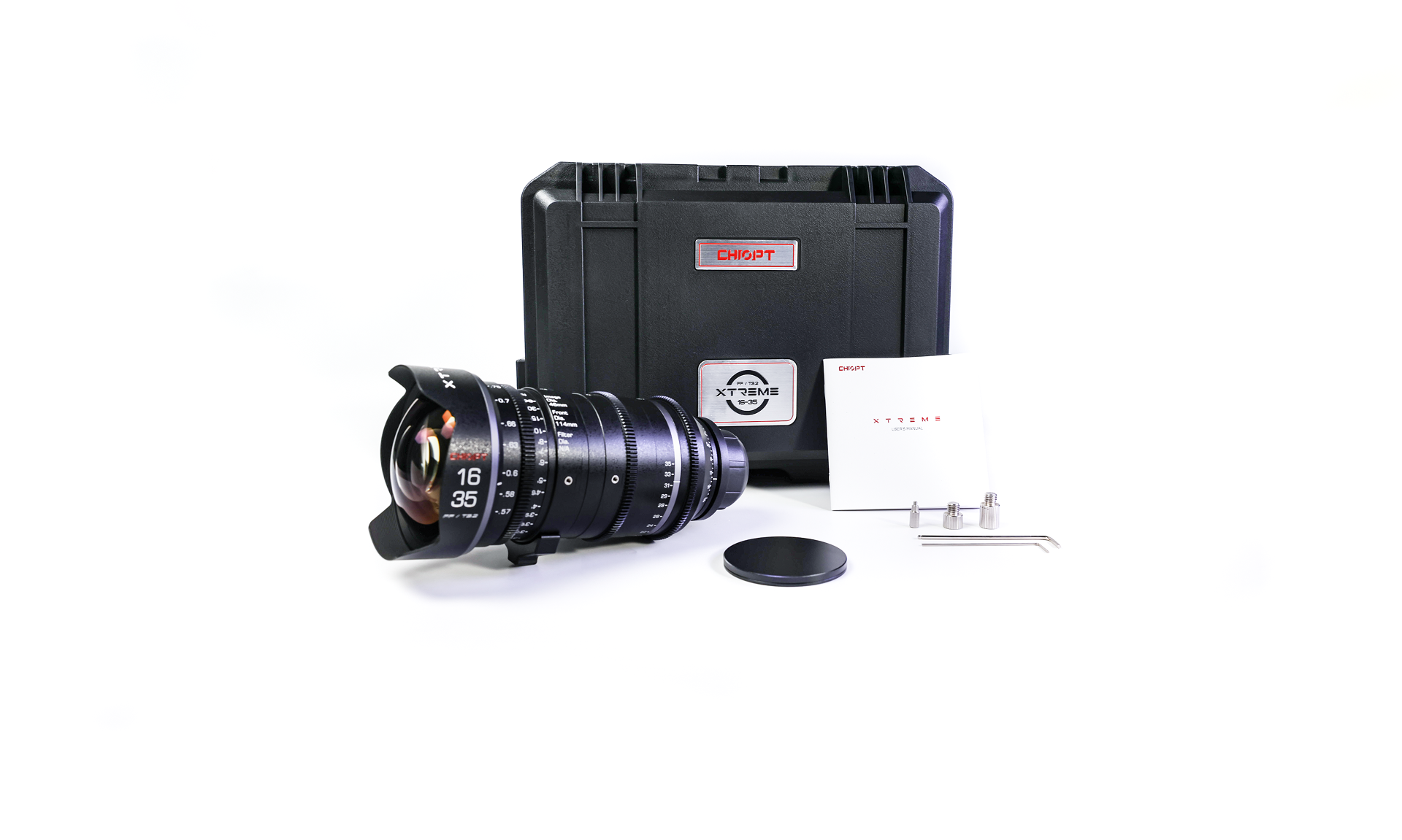

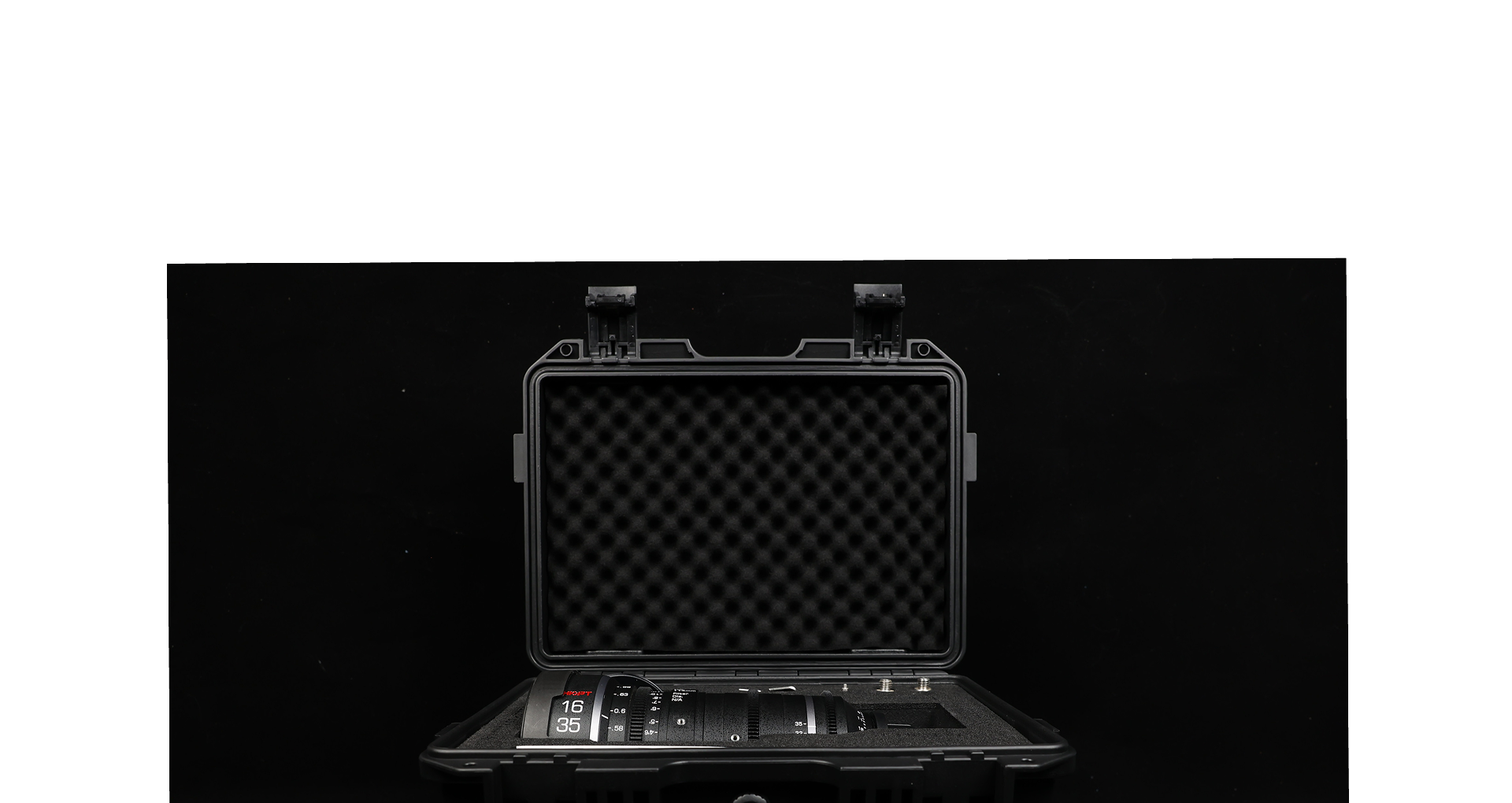

When you open it, the first sound you hear is one with just the right amount of damping.The box shields the light for you, and when closed, it fits perfectly, like a perfect punctuation mark.
| Model | XTREME ZOOM 16-35mm/T3.2 | XTREME ZOOM 28-85mm/T3.2 | XTREME ZOOM 75-250mm/T3.2 |
| Mount | PL/EF/E | PL/EF/E | PL/EF/E |
| Focal length range | 16-35mm | 28-85mm | 75-250mm |
| Zoom ratio | 2.18x | 3x | 3.5x |
| Minimum T Stop | T3.2(F2.8) | T3.2(F2.8) | T3.2(F2.8) |
| Aperture adjustment range | T3.2-T22 | T3.2-T22 | T3.2-T22 |
| Image circle diameter | ⌀46mm | ⌀46mm | ⌀46mm |
| Flange focal distance | 52mm(PL)/44mm(EF)/18mm(E) | 52mm(PL)/44mm(EF)/18mm(E) | 52mm(PL)/44mm(EF)/18mm(E) |
| Minimum focusing distance of the lens front | 0.34m | 0.4m | 1.5m |
| The closest focusing distance of the sensor plane | 0.57m | 0.7m | 1.8m |
| Close-up magnification | 0.05-0.1x | 0.05-0.15x | 0.05-0.18X |
| Close-up frame size | 16mm:(728*493mm) 35mm:(369*248mm) | 28mm:(723*470mm) 85mm:(233*157mm) | 75mm:(646*429mm) 250mm:(197*133mm) |
| Horizontal Field of View | 92.7-56.4° | 66.4~24° | 26.8~8.2° |
| Vertical Field of View | 77-44.2° | 46.3~16.2° | 17.9~5.54° |
| Diagonal field of view angle | 103.5-66.4° | 76.5~28.2° | 32~9.7° |
| Number of aperture blades | 9PCs | 9PCs | 11PCs |
| Zoom ring rotation angle | 103° | 103° | 104° |
| Aperture ring rotation angle | 84° | 84° | 84° |
| Focus ring rotation angle | 288° | 288° | 288° |
| Maximum outer diameter × length | ⌀114*229.2（PL）*229.2（EF）*254.5（E） | ⌀114*228（PL）*229（EF）*254.5（E） | ⌀122*228（PL）*229（EF）*254.5（E） |
| Lens Weight | 2.5kg（PL）/2.55kg（EF）/2.6kg（E） | 2.7（PL）/2.75（EF）/2.8KG（E） | 2.9（PL）/2.95（EF）/3.1KG（E） |
| Front group filter aperture | ⌀114mm | ⌀114mm | ⌀114mm |
| Built-in filter | N/A | N/A | N/A |
| Focus gear module | 0.8M | 0.8M | 0.8M |
